Parker Hannifin

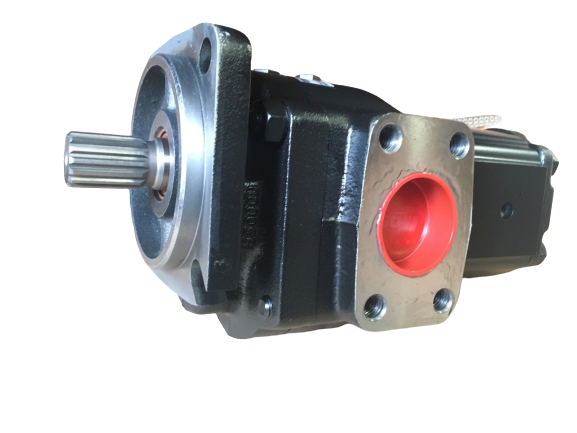

20/925357 Genuine Parker / JCB Loadall Twin Hydraulic Pump 36 +16 CC/REV

20/925357 Genuine Parker / JCB Loadall Twin Hydraulic Pump 36 +16 CC/REV

67 en stock

Prix habituel €901,80 EUR
Prix habituel Prix promotionnel €901,80 EUR
En vente Épuisé
Taxes incluses.

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.
Key Information
  • Rotation: Counter-Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE spline 16/32 Pitch
  • SAE B 4 hole mounting flange
  • Front pump displacement: 36 cc/rev (33L/Min per 1000 rpm)
  • Rear pump displacement: 16 cc/rev (29L/Min per 1000 rpm)
  • Combined 2” SAE flange inlet
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 325 Nm
  • Comes complete with LS priority valve

Replaces the following JCB part numbers

  • 20/925357- 20/925592 - 7029

Weight

  • 18KG

Machine Fitment

  • PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 DUTCH MILITARY 9812/7025
  • PUMP (TWO STAGE) MAIN HYDRAULICS 540S XL 9802/7020
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530 SUPER 9802/7020
  • PUMP (TWO STAGE) MAIN HYDRAULICS 540 FS PLUS 9802/7020
  • PUMP (TWO STAGE) MAIN HYDRAULICS 540 SUPER 9802/7020
  • PUMP (TWO STAGE) MAIN HYDRAULICS 540 SWAY 9802/7040
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530 9802/7040
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530S XL 9802/7020
  • PUMP (TWO STAGE) MAIN HYDRAULICS 540 9802/7040
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530 SWAY 9802/7040
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530 FS PLUS 9802/7020
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530S XL 9802/7960
  • PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 SWAY 9802/7880
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530 FS PLUS 9802/7960
  • PUMP (TWO STAGE) MAIN HYDRAULICS 533-105 9802/7880
  • PUMP (TWO STAGE) MAIN HYDRAULICS 9802/7880
  • PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 SWAY 9802/7060
  • PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 FS PLUS 9802/7060
  • PUMP (TWO STAGE) MAIN HYDRAULICS 530 SUPER AG 9802/7960
  • PUMP (TWO STAGE) MAIN HYDRAULICS 533-105 9802/7060
  • PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 FS 9802/7060
  • PUMP (TWO STAGE) MAIN HYDRAULICS 535-95 9802/7060
  • PUMP (TWO STAGE) MAIN HYDRAULIC 530 LE 9802/7850
  • PUMP (TWO STAGE) MAIN HYDRAULIC 530 LE SWAY 9802/7850
