Parker Hannifin

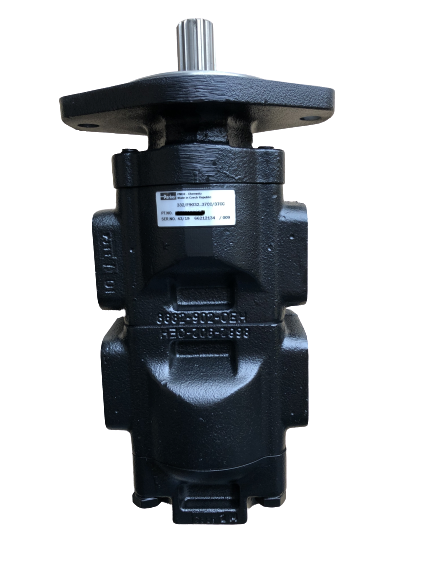

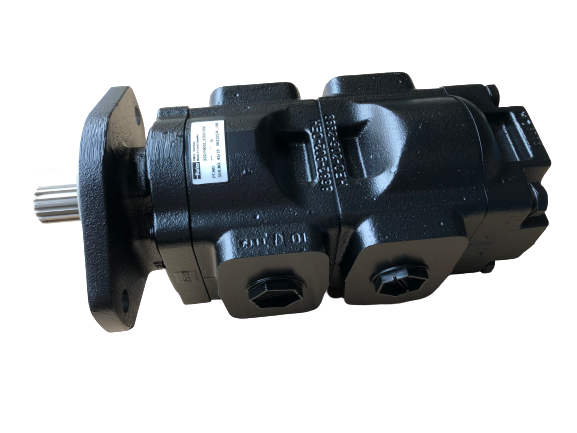

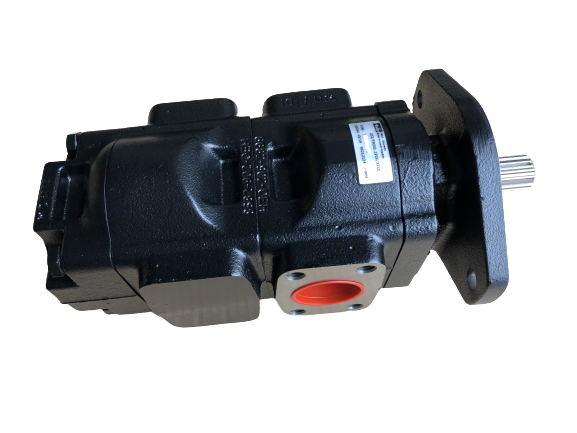

20/925337 Genuine Parker / JCB 3CX Twin Hydraulic Pump 29 + 23 CC/REV
20/925337 Genuine Parker / JCB 3CX Twin Hydraulic Pump 29 + 23 CC/REV
Stock bas : 5 restant(s)
PRICE EXCL. VAT
- Worldwide shipping via trusted and reliable couriers.
- Huge savings against OEM parts.
- Need assistance? Contact our expert sales team.
Impossible de charger la disponibilité du service de retrait
- Rotation: Clockwise (looking from shaft end)
- 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
- SAE B 2 hole mounting flange
- Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
- Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
- Single 2” SAE flange inlet
- Combined Single pump outlet: 1 1/16”-12 UNF threaded
- Maximum working pressure on front pump: 275 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 460 Nm
Weight
- 26KG
Replaces the following JCB part numbers
- 20/925337
Machine Specific Hydraulic Pumps
Hydraulic pumps are essential components in a wide range of machinery and equipment, serving critical roles in providing power and force for various applications. However, selecting the right hydraulic pump for your specific needs can be a challenging task. Mis-ordering a hydraulic pump can lead to compatibility issues, reduced efficiency, and costly replacements. To ensure you get the right hydraulic pump for your machine, we strongly recommend contacting our experienced sales team before placing your order.
The Importance of Expert Guidance
Selecting the correct hydraulic pump for your application involves considering various factors, including:
1. Flow Rate and Pressure Requirements
Hydraulic systems vary in their flow rate and pressure requirements. A mismatch in these specifications can lead to inefficiencies and potential damage to your equipment. Our sales team will help you determine the precise flow rate and pressure your machine needs.
2. Hydraulic Pump Type
There are various types of hydraulic pumps, such as gear pumps, vane pumps, and piston pumps, each with its unique characteristics. Choosing the right type of pump is crucial for the efficient operation of your equipment.
3. Mounting and Configuration
Different machines have distinct mounting configurations and requirements. Our sales team can assist you in selecting a pump that fits seamlessly into your existing system.
4. Compatibility with Existing Components
Your hydraulic pump should work harmoniously with other components in your hydraulic system, including valves, cylinders, and hoses. Our experts can ensure compatibility and provide guidance on any necessary adjustments.
How Our Sales Team Can Help
Our dedicated sales team is equipped with the knowledge and experience to guide you through the selection process. When you contact us, here's what you can expect:
-
Personalized Consultation: Our experts will take the time to understand your specific machine, application, and performance requirements. They'll also check your machines serial number to ensure pump compatibility.
-
Recommendations: Based on the information you provide, we will recommend the most suitable hydraulic pump options.
-
Detailed Explanations: We will explain the technical aspects of the recommended pumps, helping you make an informed decision.
-
Quotations: Our team will provide you with competitive pricing and quotes for the recommended pumps.
-
After-Sales Support: We are here to assist you not only before your purchase but also after it. We can provide technical support and assistance throughout the installation and use of your hydraulic pump.
Contact Us Today
Ordering the right hydraulic pump is crucial for the longevity and efficiency of your equipment. To ensure you make the best choice, contact our sales team today. Our experts are ready to provide you with the guidance and support you need to select the perfect hydraulic pump for your specific application.
Don't hesitate to reach out to us for any questions or assistance in ordering hydraulic pumps. Your satisfaction and the proper operation of your machinery are our top priorities. Contact us now to get started on the path to a successful hydraulic pump purchase.
