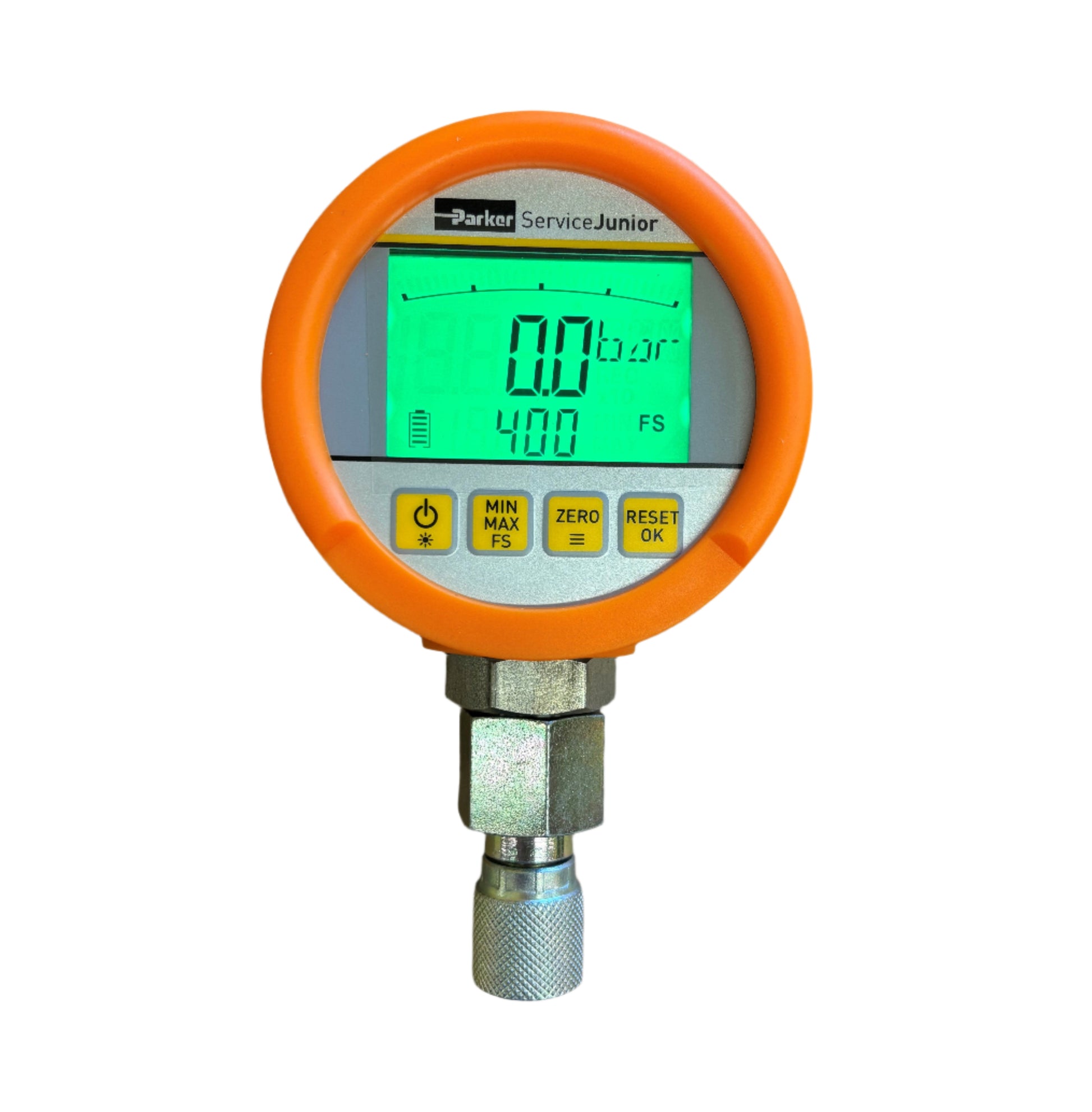

Parker SCJN-400-01 Service Junior Digital Pressure Gauge 44092031

0-400 Bar range reading range . Max input pressure 800Bar

• Digital pressure measurement and backlit display
• Accuracy ± 0.1-0.5 % FS (full scale)
• Display with bar graph (trailing indicator) with peak-hold function
• Pressure peak capture at 10-ms scanning rate
• Easy operation
• Long-term stability
• Rotatable once connected

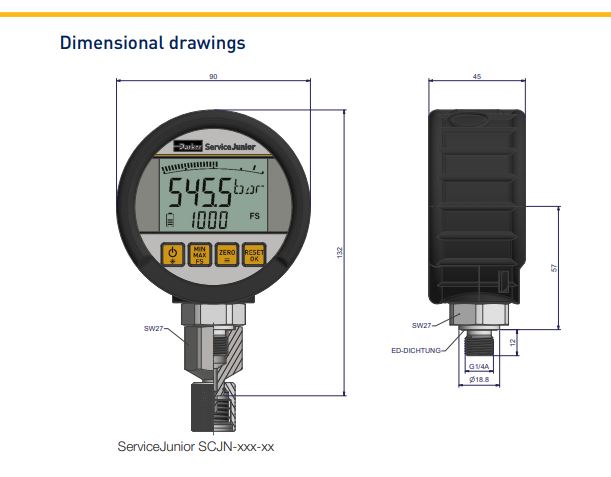

• Actual Gauge connection 1/4" BSPP ( with test point adaptor removed )
• Simple hand connect via M16 x 2mm test point female swivel adaptor

The ServiceJunior measures, displays and stores pressures in a single device. It features an extremely robust design in a metal housing and is easy to operate. Accurate measurements over a wide pressure range usually require multiple mechanical gauges. Due to the high accuracy, resolution and long-term stability as well as the 4 1/2-digit display, the ServiceJunior performs this task with only one instrument.
Pressure peaks are reliably detected with a sampling rate of 10 ms. Using the MIN-/MAX function, the minimum and maximum pressure is automatically stored and can be called up at the push of a button

Markets:
• Industrial Equipment & Products
• Mining
• Off-Highway Mobile Equipment
• Transportation
• Marine/Offshore
• Power Generation

Features/Benefits:
• Extremely robust and reliable due to metal housing
• One-button recording eliminates the need for complex calculations and tedious configurations
• Memory optimization through automatic data compression
• Suitable for measuring hydraulic and pneumatic system pressures

Applications:
• Maintenance and service
• Pressure test
• Leakage test
• Monitoring and commissioning
• Quality assurance and laboratory
