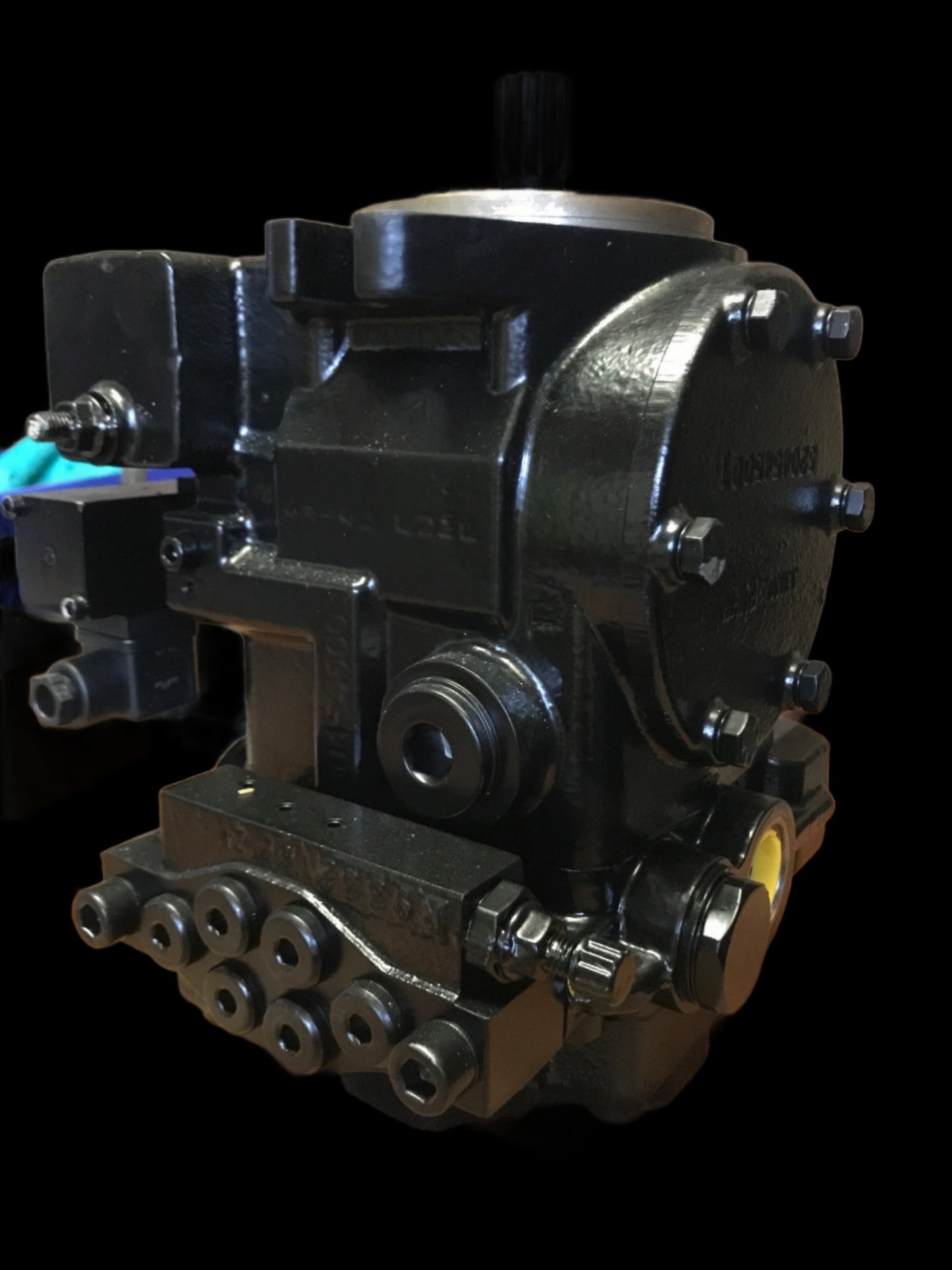

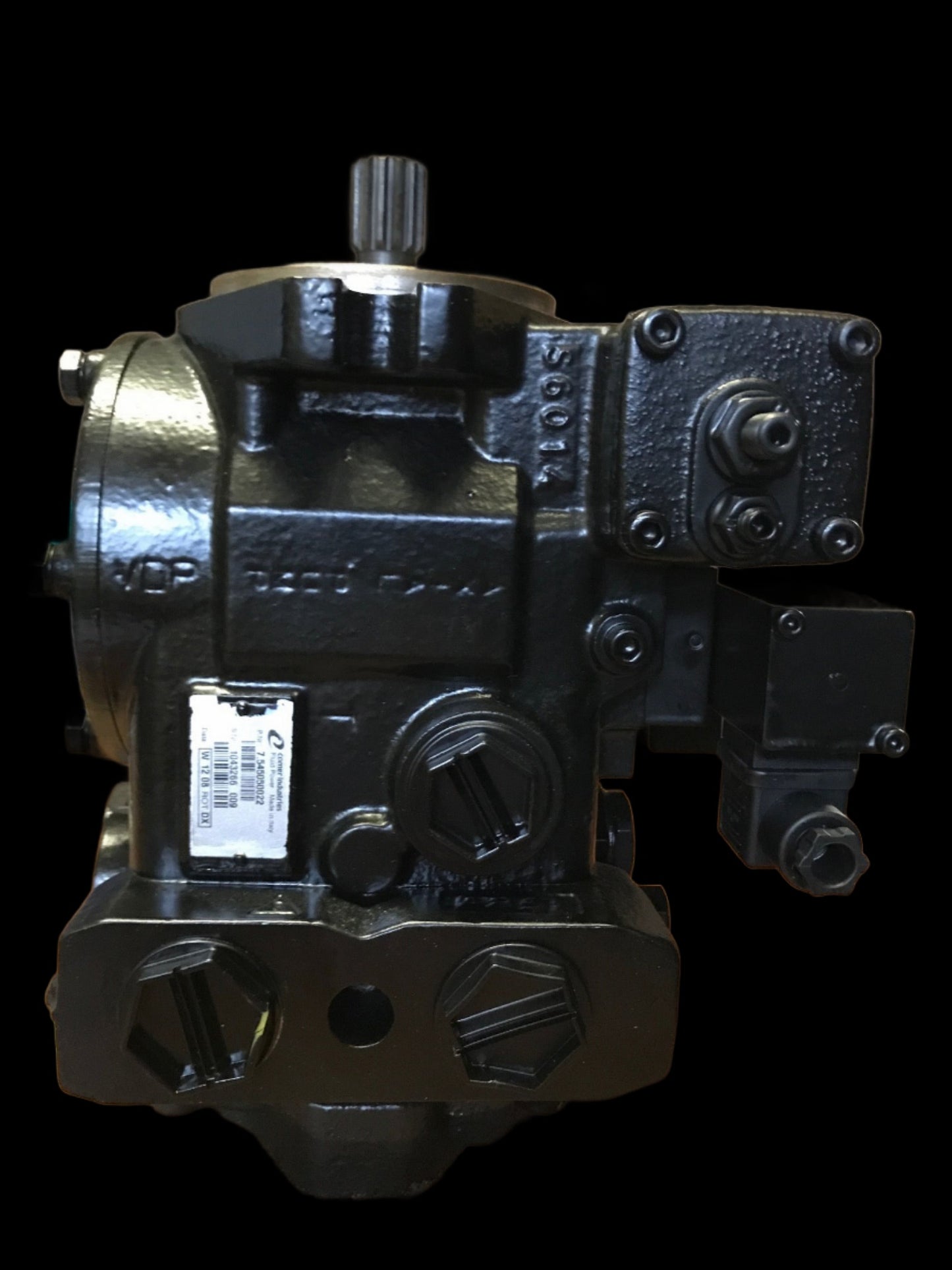

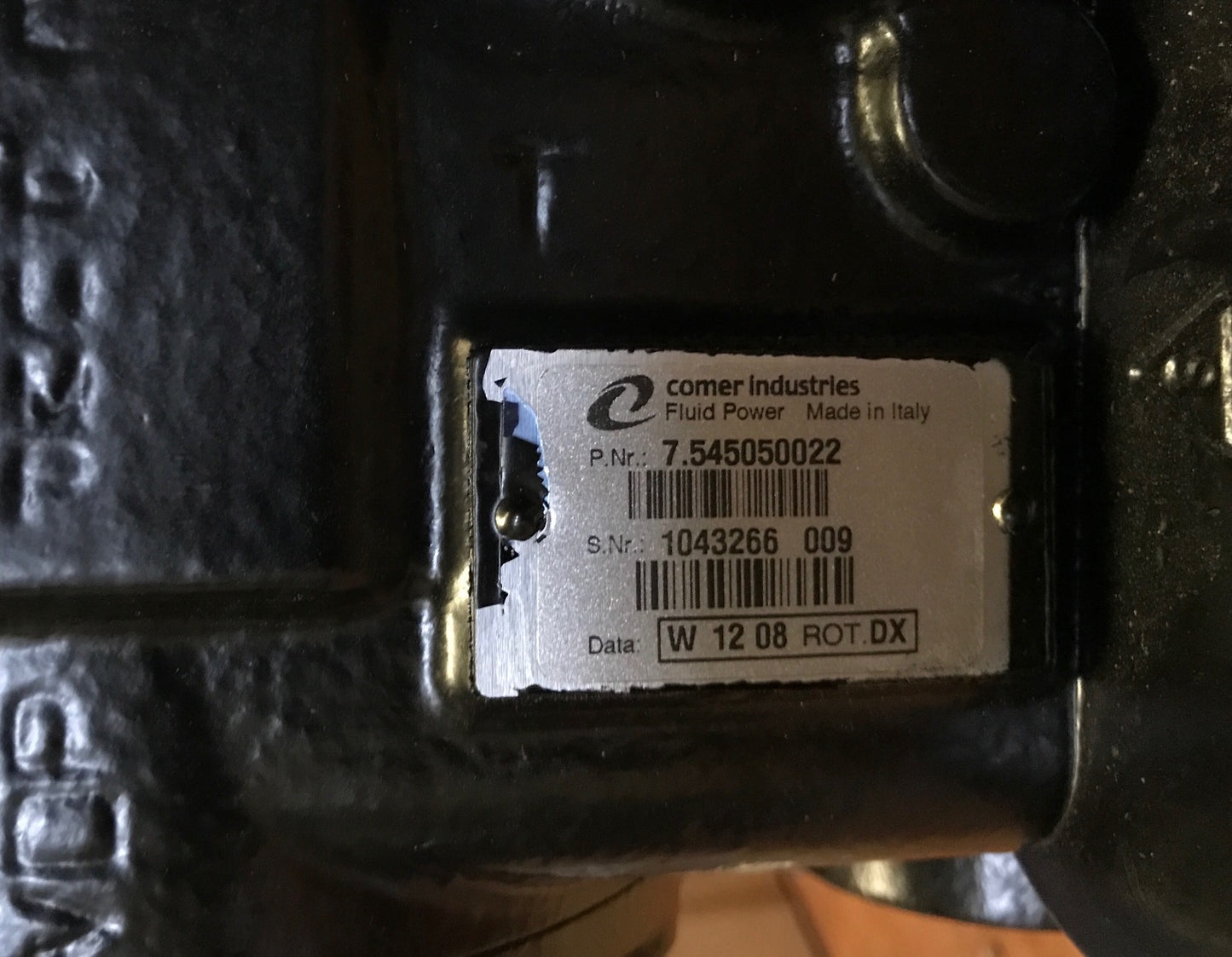

COMER INDUSTRIES V450/50S3P102827R2611AA00LE PUMP. PART NUMBER -7545050022

12V Proportional Elec. control 250Bar.

Poclain ref PM45-52 Hydraulic pump

SPECIFICATIONS

POCLAIN REF PM45-52-S3-P12-10-28-27-R26-11-A0000.

REF V450/50S3P102827R2611AA00LE

CLOCKWISE ROTATION. 700 - 3400RPM OPERATING RANGE

COULD BE USED FOR MANY CLOSED LOOP HYDRAULIC APPLICATIONS THAT REQUIRE 20-60HP SUCH AS CONVEYOR DRIVES , MARINE PROPELLOR DRIVES

ETC ETC

50cc/rev VARIABLE FLOW IN BOTH DIRECTIONS (A-B OR B-A)

CONTROL 12V PROPORTIONAL  SOLENOID 0-50cc/rev

MAX CONT.PRESSURE 250 BAR. PEAK PRESSURE 350BAR

MOUNTING FLANGE SAE B 2 HOLE.

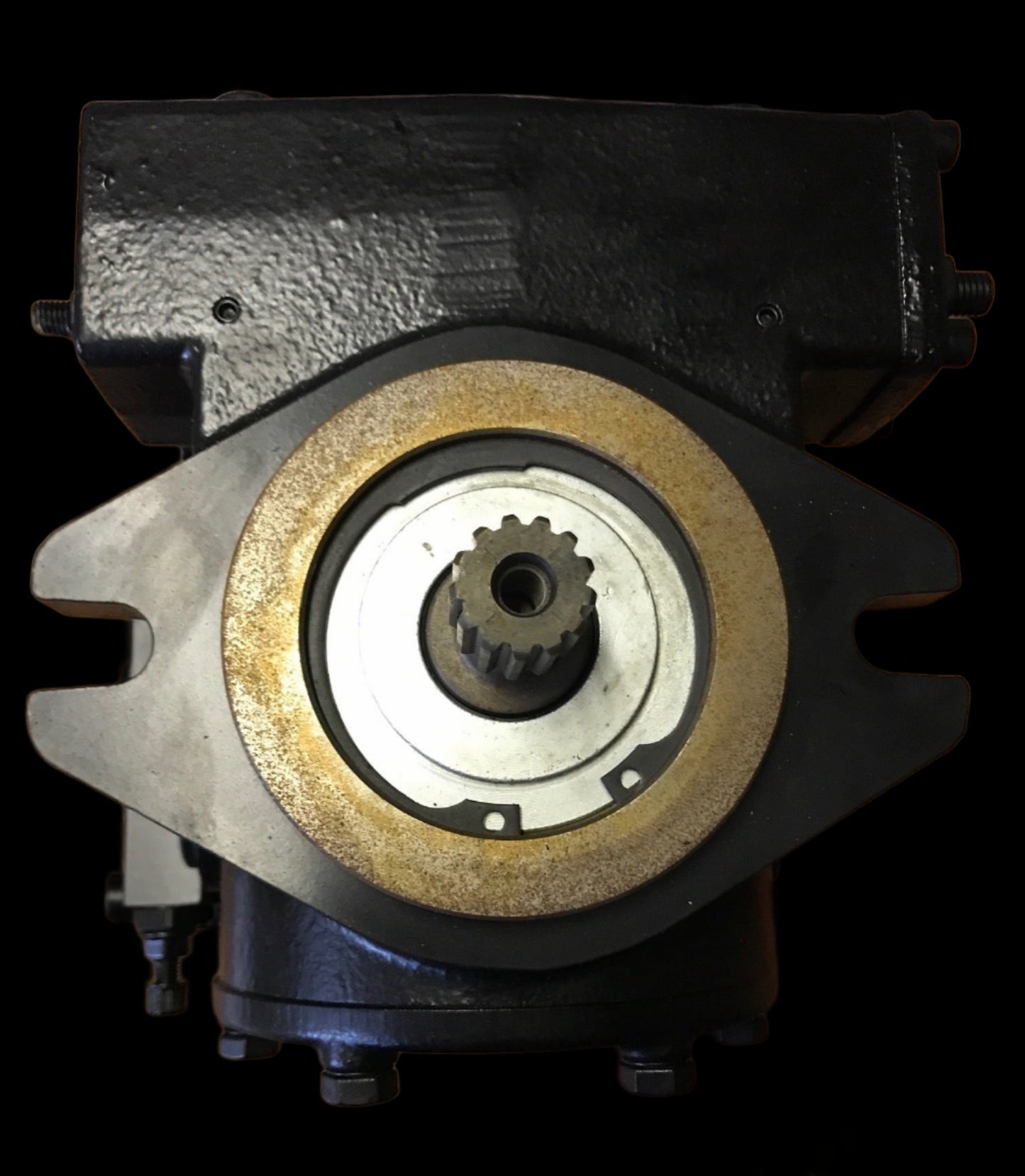

SHAFT 7/8" 13T SAE B. MAX TORQUE 220Nm

REAR THRU DRIVE SAE A.
