ASA Hydraulik

ASA SAE 1 1/2" -DIN40 -AF40 Butterfly Flange / Valve SDA0040

ASA SAE 1 1/2" -DIN40 -AF40 Butterfly Flange / Valve SDA0040

Stock bas : 4 restant(s)

Prix habituel €221,51 EUR
Prix habituel Prix promotionnel €221,51 EUR
En vente Épuisé
Taxes incluses.

PRICE EXCL. VAT

  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.

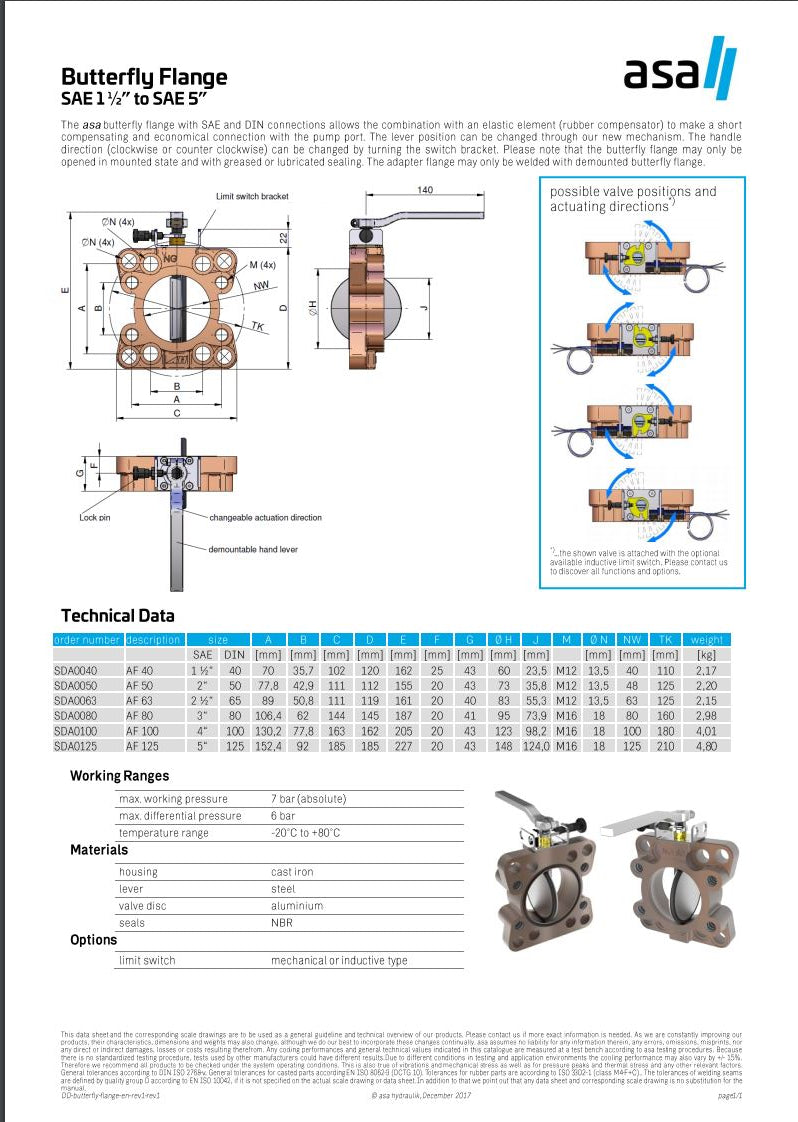

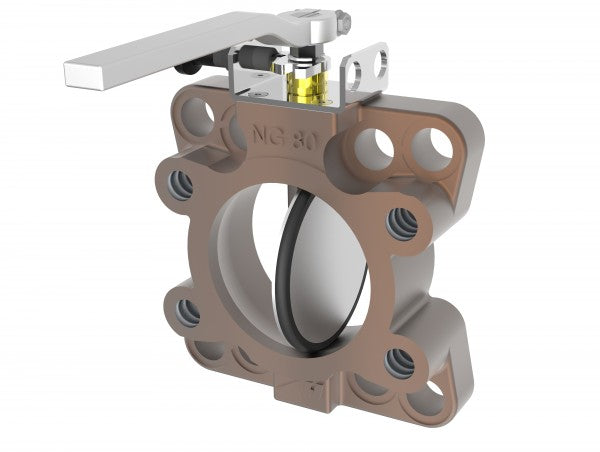

ASA SAE -DIN Butterfly Flange / Valve SDA0040

The asa butterfly flange with SAE and DIN connections allows the combination with an elastic element (rubber compensator) to make a short compensating and economical connection with the pump port.



The lever position can be changed through the new mechanism. The handle direction (clockwise or counter clockwise) can be changed by turning the switch bracket.



Please note that the butterfly flange may only be opened in mounted state and with greased or lubricated sealing. The adapter flange may only be welded with demounted butterfly flange.



Afficher tous les détails
