ASA Hydraulik

ASA ILLZTH4767K 50 Deg Temperature Switch

ASA ILLZTH4767K 50 Deg Temperature Switch

6 en stock

Prix habituel €67,03 EUR
Prix habituel Prix promotionnel €67,03 EUR
En vente Épuisé
Taxes incluses.

PRICE EXCL. VAT

  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.

Operating temperature: 50°C +/-5°C (122°F +/-9°F)



Differential:                    10°C (18°F)



Housing:                         Material: brass OT58

                                       Protection: IP 67

                                       Any mounting position

                                       Weight: 0,13kg (0,29lbs)

                                       max. torque: 50Nm (37lbf ft)



Measurement output:    Contact: N.O.

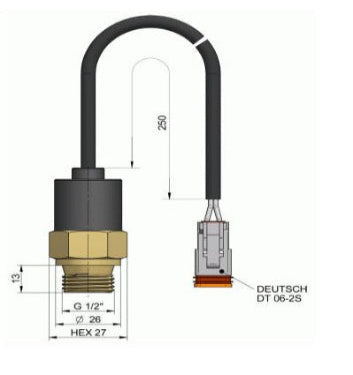

                                       Connection: plug connection DT 06-2

                                   (make Deutsch)



                           Maximum current:

                                   12V  DC:  10A

                                   24V  DC:  10A

                                   120V AC: 15A

                                   240V AC: 10A



Number of cycles:          100.000



Ambient conditions:       Oil temperature range:

                                               -20 to +100°C (-4 to +212°F)

                                       Ambient temperature range:

                                               -20 to +85°C (-4 to +185°F)



Accessories:                   Temperature control ILLZTC12, ILLZTC24

                                       Fan switch box ILLZKL29



The new temperature switches with IP69K protection are available with 3 different temperature settings. In connection to the control units (ILLZTC12-2K for 12V or ILLZTC24-2K for 24V) the fan starts according to the switch temperature on a soft start curve, extending the life time of the components.
