ASA Hydraulik

ASA TT25RA47CC CC COOLER 230/400V 50Hz AC 30LPM

ASA TT25RA47CC CC COOLER 230/400V 50Hz AC 30LPM

Stock bas : 1 restant(s)

Prix habituel €1.968,70 EUR
Prix habituel Prix promotionnel €1.968,70 EUR
En vente Épuisé
Taxes incluses.

PRICE EXCL. VAT

  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.

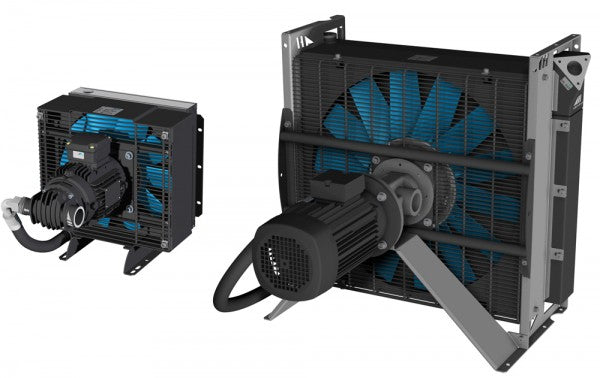

Oil/air offline cooler TT rail - CC 230/400V 50Hz AC



The oil / air coolers of our CC series are autonomous cooling systems with an integrated circulation pump. They work as a separate cooling unit or as a filter cooling unit with an adequate filter. The benefits of such circulation coolers are a constant cooling performance and a higher durability, because there are no pressure vibrations or peaks in the cooler unit.

Conditions of use: Maximum oil temperature: 100°C, maximum air temperature: 50°C. Motors can be used up to an altitude of 1.500m.

For other conditions of use please contact our engineers.

Noise level: Noise levels are measured in accordance with 2006/42/EC and EN ISO 3744. Dimensions: General tolerance according to DIN 2768-v

Afficher tous les détails
