20/912800 Genuine Parker/JCB 3CX Twin Hydraulic Pump 33 + 29 CC/REV - Unwin Hydraulic Engineering
7029122001
Parker Hannifin

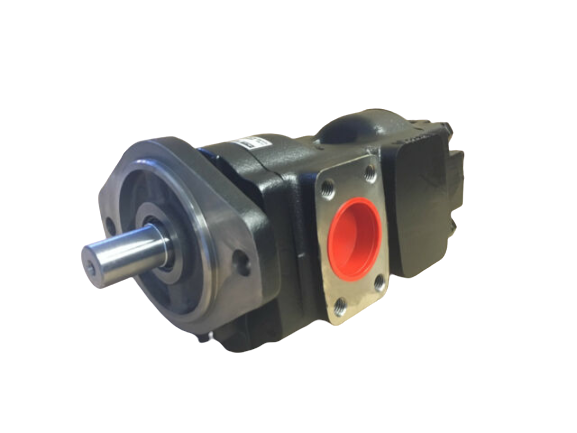

20/912800 Genuine Parker/JCB 3CX Twin Hydraulic Pump 33 + 29 CC/REV 7029122001

Part number 7029122001
€1.386,18 ex VAT €1.386,18 inc VAT€1.386,18 inc VAT €1.386,18 ex VAT

In stock

Collection from our Derbyshire HQ by arrangement

Need 10+ or a bulk price? Request a quote

Delivery price

Live courier prices — the same as you'll see at checkout.

  • Order by 1pm for same-day dispatch (subject to stock availability)
  • Up to 50% saving against OEM parts
  • Technical support from our hydraulic engineers
Not sure it's the right part?

Our engineers will check it fits before you order.

01283 817 920
Key Information
  • Rotation: Counter-Clockwise (looking from shaft end)
  • 1” Diameter parallel keyed shaft
  • SAE B 2 hole mounting flange
  • Front pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
  • Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Combined 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 275 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 325 Nm

Replaces the following JCB part numbers

  • 20/902900 - 20/903100 - 20/912800 -7470 - 4070 - 4072

Weight

  • 26KG

Machine Fitment

  • PUMP, MAIN HYDRAULIC CODE 8282 M 3CX (CM) Centremount AA AB Engine 9802/9720
  • PUMP, MAIN HYDRAULIC CODE 831 3CX PC Sideshift Servo AR/AK Engine 9802/9770
  • PUMP, MAIN HYDRAULIC CODE 831 GEAR PUMP 3CX (24 Volt) Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 831 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 831 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 831 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 831 3CXSM-4T PC Centremount Servo AR/AK Engine 9802/9780
  • PUMP, MAIN HYDRAULIC CODE 831 3CX Sideshift AR AK Engine 9802/9750
  • PUMP, MAIN HYDRAULIC CODE 831 3CXSM-4T Centremount AR AK Engine 9802/9760
  • PUMP, MAIN HYDRAULIC CODE 831 3CXSM PC Sideshift Servo AR/AK Engine 9802/9770
  • PUMP, MAIN HYDRAULIC CODE 831 3CXSM Sideshift AR AK Engine 9802/9750
  • PUMP, MAIN HYDRAULIC CODE 831 3CX-4T PC Centremount Servo AR/AK Engine 9802/9780
  • PUMP, MAIN HYDRAULIC CODE 831 3CX444 SUPER Sideshift AR AK Engine 9802/9750
  • PUMP, MAIN HYDRAULIC CODE 831 3CX444S PC Sideshift Servo AR/AK Engine 9802/9770
  • PUMP, MAIN HYDRAULIC CODE 831 3CX-4T Centremount AR AK Engine 9802/9760
  • PUMP, MAIN HYDRAULIC CODE 831 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730
