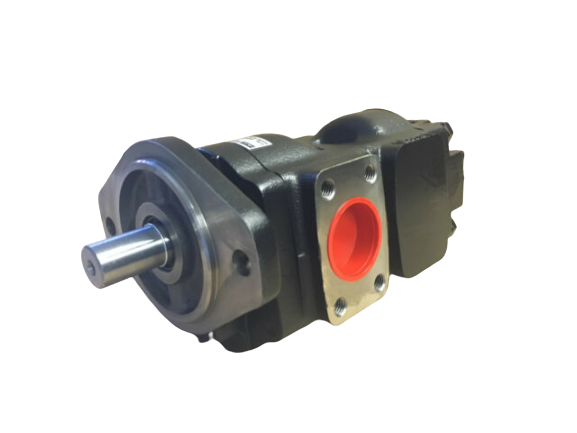

20/903200 Genuine Parker / JCB 3CX Twin Hydraulic Pump 41 + 29 CC/REV

20/903200 Genuine Parker / JCB 3CX Twin Hydraulic Pump 41 + 29 CC/REV

18 en stock

Prix habituel €881,70 EUR
Prix habituel Prix promotionnel €881,70 EUR
En vente Épuisé
Taxes incluses.

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.
Key Information
  • Rotation: Counter-Clockwise (looking from shaft end)
  • 1” Diameter parallel keyed shaft
  • SAE B 2 hole mounting flange
  • Front pump displacement: 41 cc/rev (41L/Min per 1000 rpm)
  • Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 220 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 325 Nm

Replaces the following JCB part numbers

  • 20/911200 - 7441 - 4071 - 20/903200

Weight

  • 26KG

Machine Fitment

  • PUMP, MAIN HYDRAULIC CODE 4071 4CX444S PC Sideshift Servo AR/AK Engine 9802/9770
  • PUMP, MAIN HYDRAULIC CODE 4071 4CX444 SUPER Sideshift AR AK Engine 9802/9750
  • PUMP, MAIN HYDRAULIC CODE 4071 4CXSM444S PC Sideshift Servo AR/AK Engine 9802/9770
  • PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 4CXSM444 Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4071 4CN444 SUPER Centremount AR AK Engine 9802/9760
  • PUMP, MAIN HYDRAULIC CODE 4071 4CXSM444 Sideshift AR AK Engine 9802/9750
  • PUMP, MAIN HYDRAULIC CODE 4071 4C PC Centremount Servo AR/AK Engine 9802/9780
  • PUMP, MAIN HYDRAULIC CODE 4071 3CX444 SUPER Sideshift AR AK Engine 9802/9750
  • PUMP, MAIN HYDRAULIC CODE 4071 3CXSM444S PC Centremount Servo AR/AK Engine 9802/9780
  • PUMP, MAIN HYDRAULIC CODE 4071 4CX444 Centremount AR AK Engine 9802/9760
  • PUMP, MAIN HYDRAULIC CODE 4071 3CX444S PC Sideshift Servo AR/AK Engine 9802/9770
  •  PUMP, MAIN HYDRAULIC CODE 4071 4CX444 Sideshift AR AK Engine 9802/9750
  • PUMP, MAIN HYDRAULIC CODE 4071 4C444 Centremount AA AB Engine 9802/9720
  • PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4071 4CX444 PC Centremount Servo AR/AK Engine 9802/9780
  • PUMP, MAIN HYDRAULIC CODE 4071 3CX CONTRACTOR Sideshift AR AK Engine 9802/9750
  • PUMP, MAIN HYDRAULIC CODE 4071 3CXSM444 SUPER Centremount AR AK Engine 9802/9760
  • PUMP, MAIN HYDRAULIC CODE 4071 4CXSM444 SUPER Sideshift AR AK Engine 9802/9750
  • PUMP, MAIN HYDRAULIC CODE 4071 4C Centremount AR AK Engine 9802/9760
  • PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4071 4CN Centremount AR AK Engine 9802/9760
  • PUMP, MAIN HYDRAULIC CODE 4071 4CN-2 Centremount AA AB Engine 9802/9720
  • PUMP, MAIN HYDRAULIC CODE 4071 4CS PC Centremount Servo AR/AK Engine 9802/9780
  • PUMP, MAIN HYDRAULIC CODE 4071 4CXSM444 PC Sideshift Servo AR/AK Engine 9802/9770
  • PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 4CX444 SUPER Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 4CX444 Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4071 4CN444 Centremount AA AB Engine 9802/9720
  • PUMP, MAIN HYDRAULIC CODE 4071 4CN PC Centremount Servo AR/AK Engine 9802/9780
  • PUMP, MAIN HYDRAULIC CODE 4071 GEAR PUMP 4CXSM444 SUPER Sideshift AA AB Engine 9802/9730
  • PUMP, MAIN HYDRAULIC CODE 4071 4CN-4 Centremount AA AB Engine 9802/9720
  • PUMP, MAIN HYDRAULIC CODE 4071 4CN444S PC Centremount Servo AR/AK Engine 9802/9780
  • PUMP, MAIN HYDRAULIC CODE 4071 4C SUPER Centremount AR AK Engine 9802/9760
